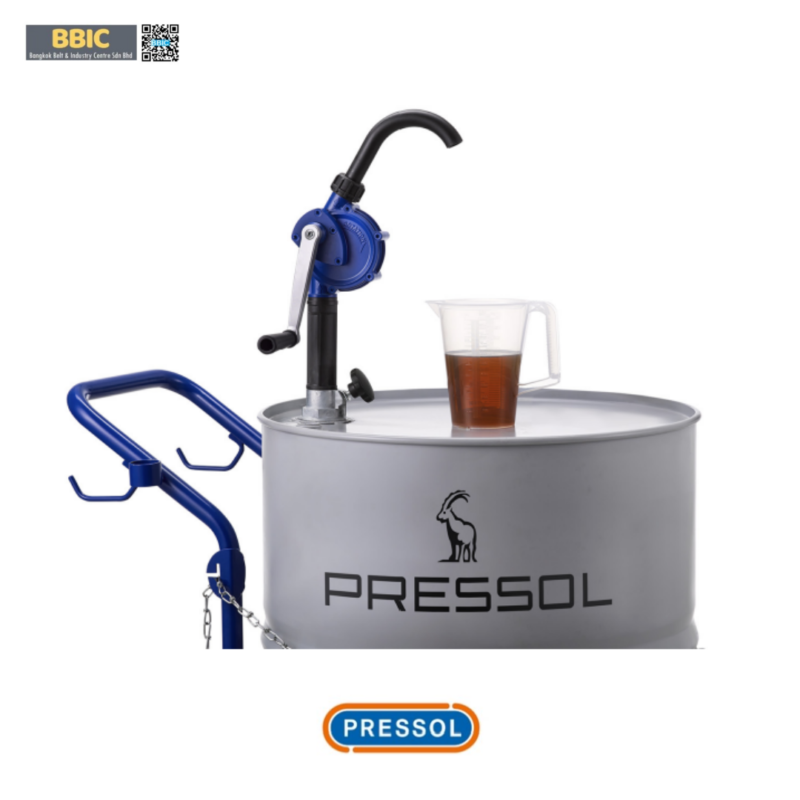

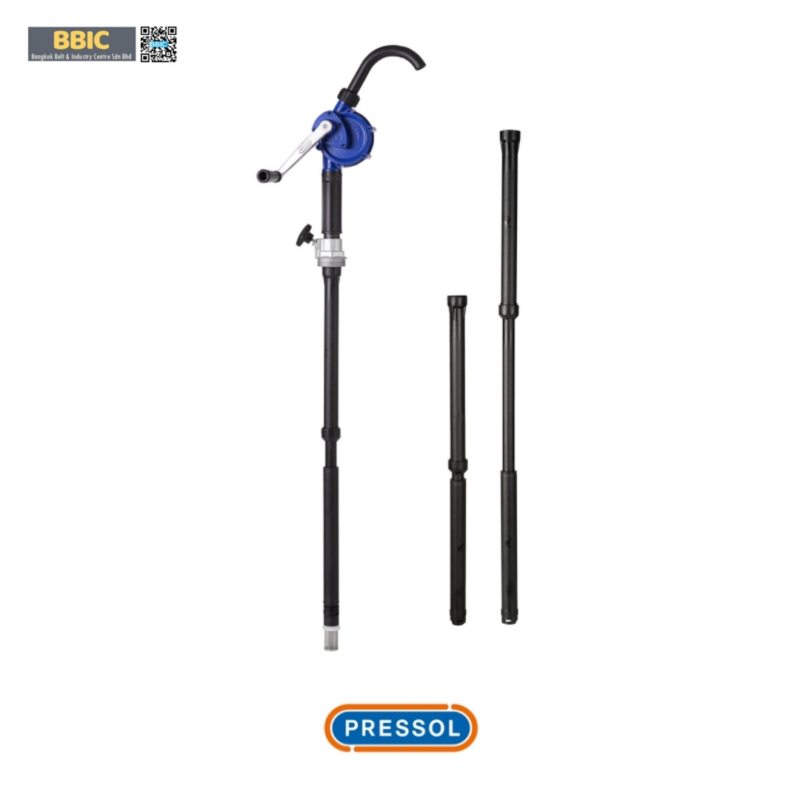

Rotary pump blue SRL 355-955 mm-18 l/min Item number: 13 055 EAN: 4103810130557 Discount group: A Technical data Delivery rate (l/rotation): 0.3 Delivery rate at 60 rotations/min; pumping medium diesel (l/min): 18 Pumping media: self-lubricating and non-aggressive media: fuel oil, diesel, petroleum, coolant fluid (undiluted); machine maintenance: hydraulic oil, cutting fluid, gear oil, oils up to SAE 90 Usage: container for 60 / 200 / 220 l Application: for filling measuring vessels, storage cans, canisters and machines Discharge: discharge spout Length, three-part suction pipe (mm): 355 – 955 Barrel screw coupling: G 2” male Material pump housing: impact-resistant zinc die casting ZL 410 Colour crank: silver Colour gear cover and gear housing: blue Color of housing: blue Weight (kg): 2.371 Specification ● Telescopic suction tube (13 094), adjustable in length (from 355 to 955 mm) ● With suction filter (13 097 003) ● Barrel screw coupling G 2” (04 464 001) ● Discharge spout (81 112) Special notes ● Smooth hand-rotating operation ● The pump is continuously positionable in 360° ● Telescopic suction tube variable from 355 mm to 955 mm ● Assembly, commissioning and container change without tools ● CNC machined, thus optimum pump efficiency ● Impact resistant pump housing ● Covering of the different components exclusively trough the seals ● Completely dismountable – easy to clean ● Spare parts available for 10 years ● Available in 4 colour variantes ● Variations: discharge hose 2 m (13 056); discharge hose 2 m and meter (13 057) ● Warranty 3 years when using the supplied suction basket (excluding wear parts) ● 0.3 liter per revolution Packaging Dimensions LxWxH (mm): 390 x 245 x 125 Weight including package (kg): 2.838 Packing unit: 1.0
