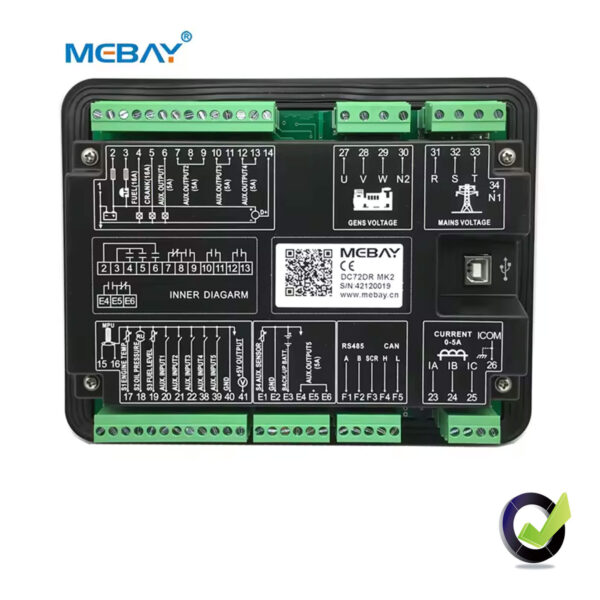

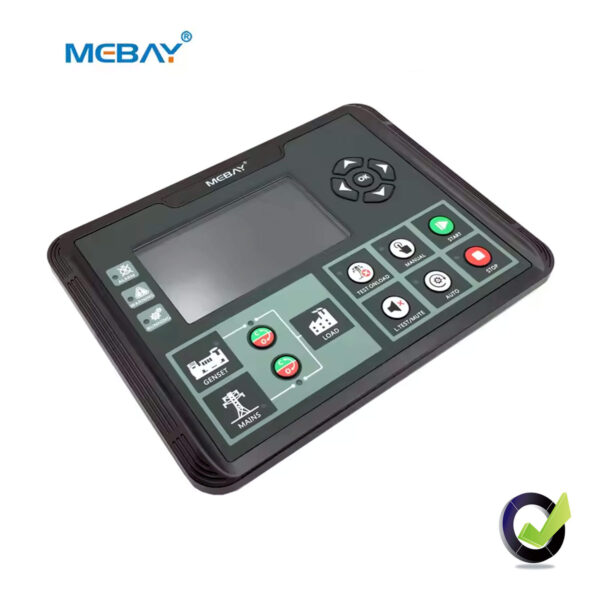

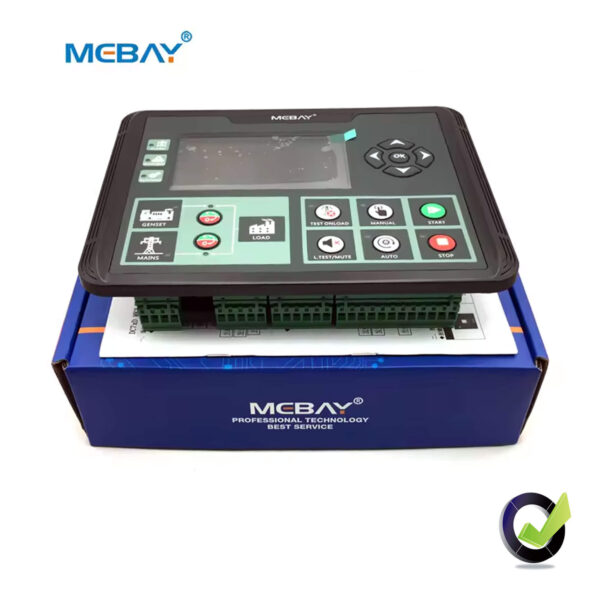

Mebay DC70D Amf Auto Start Diesel Generator Controller

Main Features There are four Models under DC7xD MK2 series. DC70D MK2: used for single machine automation. Start/Stop through remote start signal. DC72D MK2: Based on DC70D MK2, it adds Mains monitoring and AMF (Mains/Generator automatic switching control), especially suitable for the automation system composed by mains and genset. DC70DR MK2: Based on DC70D MK2, it adds RS485 port. DC72DR MK2: Based on DC72D MK2, it adds RS485 port. 32bit high performance microcomputer. 4.3inch TFT colorful big screen LCD, Available in 5 languages, user’s language set if necessary. Indicator and number display through UI surface. Acrylic material is adapted to protect the screen. Silicone panels; USBPort: parameters can be set even without power through USB port to monitor in real time. With RS485 communication port, can achieve “Three Remote” functions via MODBUS protocol. Standard CAN communication port, built-in J1939 protocol, has matched more than 30 kinds of engines; various kinds of parameters display. Input/output function, status can be shown directly. Morecategories of surface setting. Real time clock inside: preset time operate and auto maintenance is available. Genset working plan can be set as per week or month. Three class protection countdown function, which can set the maintenance time or date. With event recording function, it can save 100 groups of alarm records, including relevant parameters of the unit in case of fault alarm; 5000 system logs can be saved to find the cause of failure; 5DC7xD MK2 GENSETCONTROLLERUSER MANUAL Totally 7 relay’s output, among which 5 relay output can be self-configurable, each relay can be set as max 50 functions, besides, there are 4 groups as non-contact terminals. With 5switches input, up to 40 functions optional; 4sensor simulation input connectors, the oil pressure sensor is compatible with voltage signal input, and various display units can be configured. Battery charging control function, which can protect the battery according to battery voltage status. Sensor can be self-defined by front face button or PC software. Adapt to 3P4W,1P2W,2P3W(120V/240V,50/60HZ) Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen. Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection. Standard water-proof rubber gasket. The waterproof can reach IP65. Moduledesign: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily. Category: Controller Modules Tag: Mebay DC70D Amf Auto Start Diesel Generator Controller
