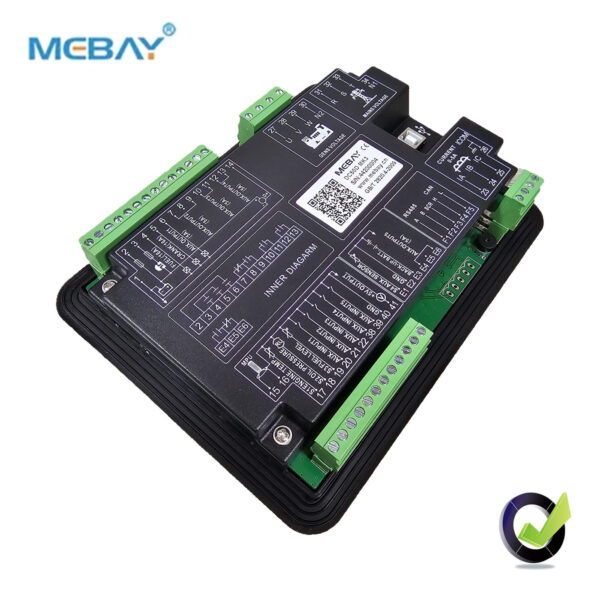

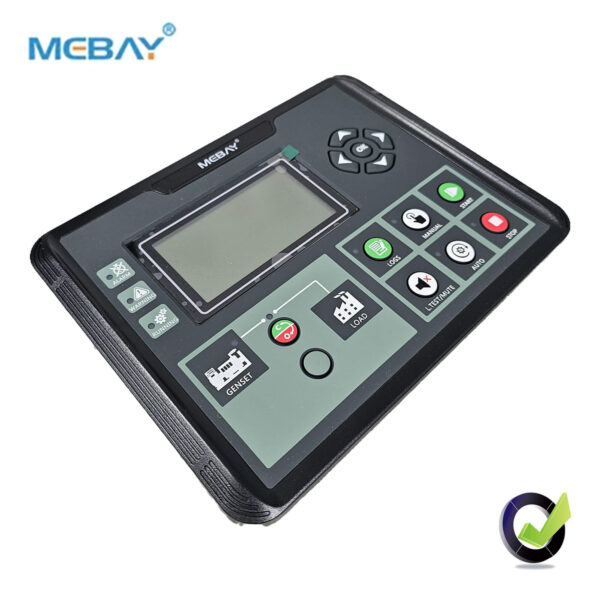

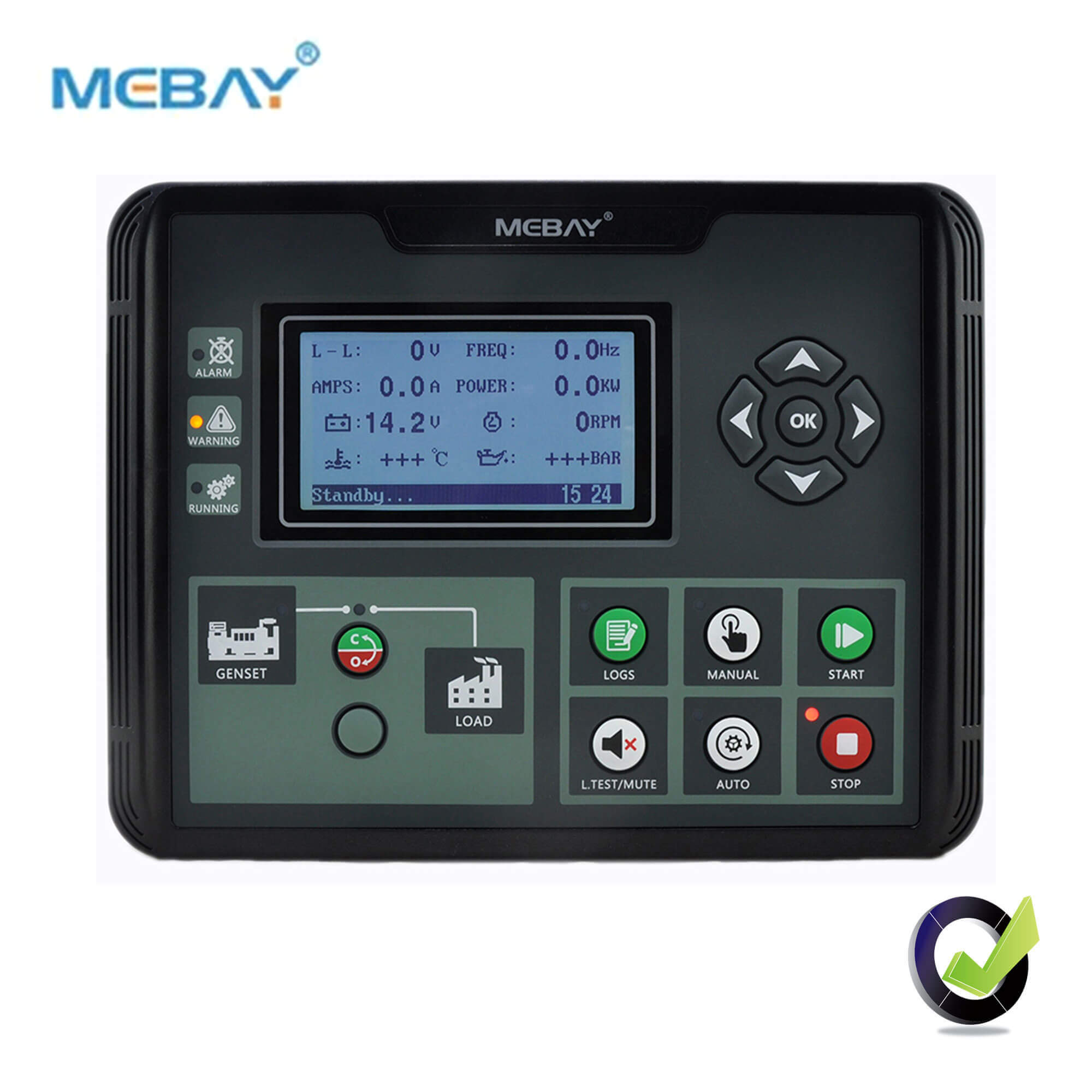

Meybay DC50D MK3 Genset Controllers for Generator

Parameters Options Parameters Working voltage DC8V—-36V Continuous Power consumption Standby：24V：MAX 1W Working：24V：MAX5W AC Voltage Input 1P2W 30VAC-276VAC (ph-N) 2P3W 30VAC-276VAC (ph-N) 3P4W 30VAC-276VAC (ph-N) Rotate speed sensor Frequency 50-10000Hz MAX Accumulating Time 99999.9Hours（Min Store time:6min） Fuel Relay Output Max 16Amp DC VE Supply voltage Start Relay Output Max 16Amp DC VE Supply voltage AUX. output 1 Max 5Amp DC VE Supply voltage AUX. output 2 Max 5Amp Non-contact normal open or normal close output AUX. output 3 5AMP Non-contact normal open output PAUX. output 4 5AMP Non-contact normal open output Excitation output Max 1AMP DC VE supply voltage Switch value input Available if connecting with Battery – Working condition -25-65℃ Storage condition -40-85℃ Protection Level IP65：when waterproof rubber gasket is added between controller and its panel Insulation strength Apply AC1.5kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min. Overall dimension 210mm*160mm*50mm Panel cutout 186mm*142mm Weight 0.85Kg Category: Controller Modules Tag: Meybay DC50D MK3 Genset Controllers for Generator
